KIT135 - Jeep Wrangler JK 2.5 Ton Steering Kit - BLK Aluminum

Do You Need A Flip Kit (Pick One)
Would you like to include JAM nut wrenches?+ $40.00
apexchassis.com\/collections\/apex-chassis-parts\/products\/kit135-jk-25ton-steering-kit-blk-aluminum

Be sure to check vehicle fitment below

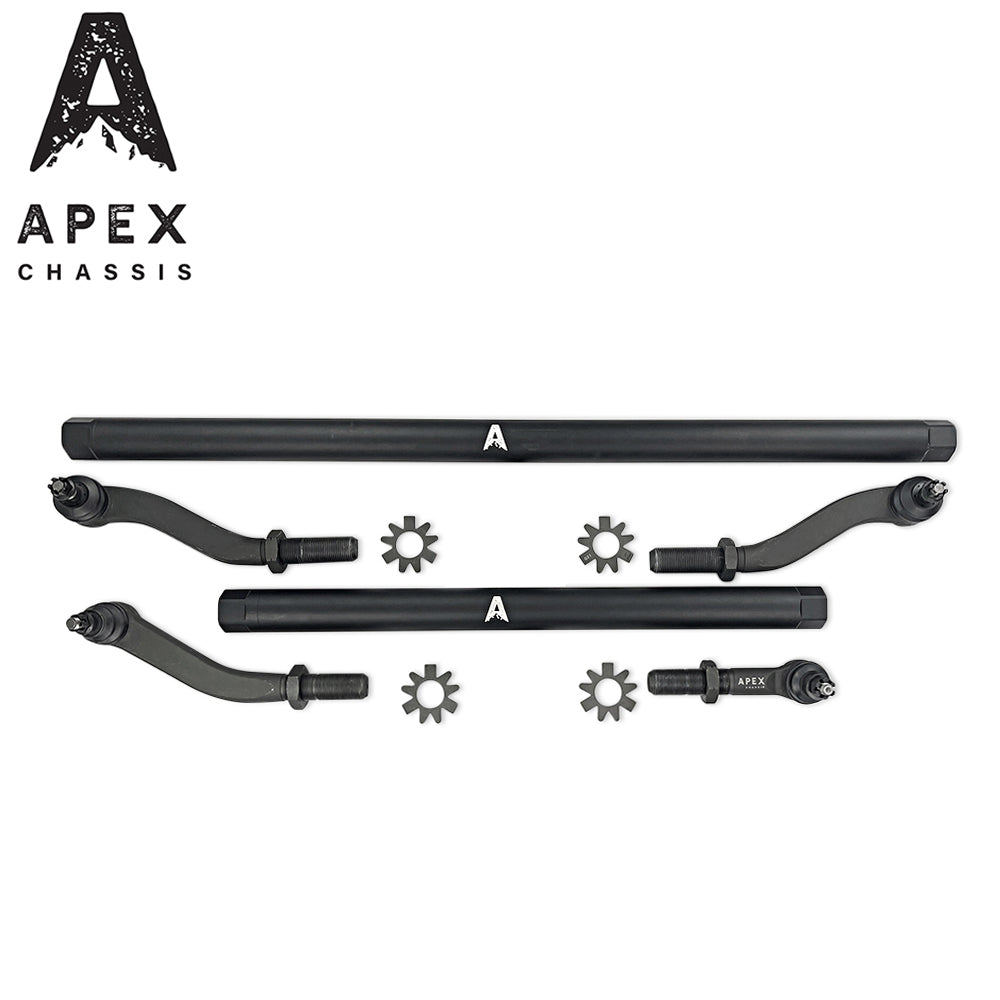

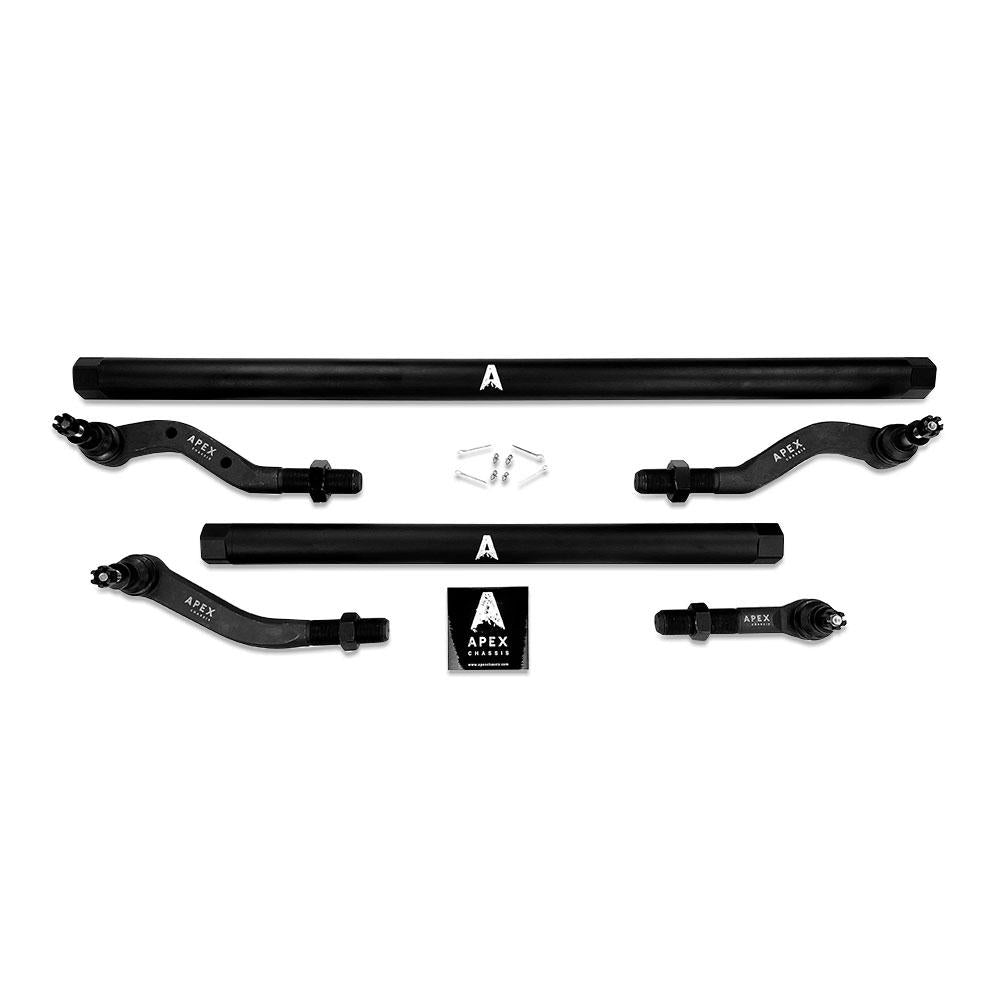

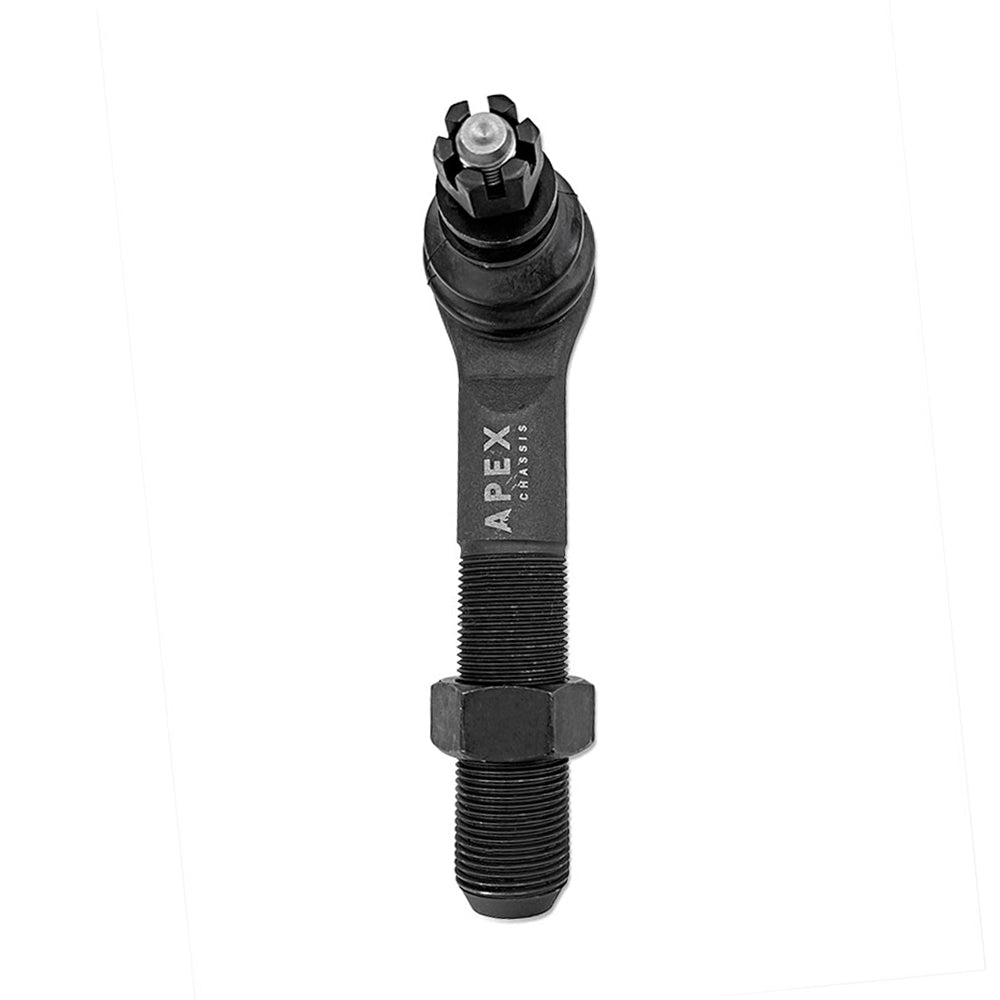

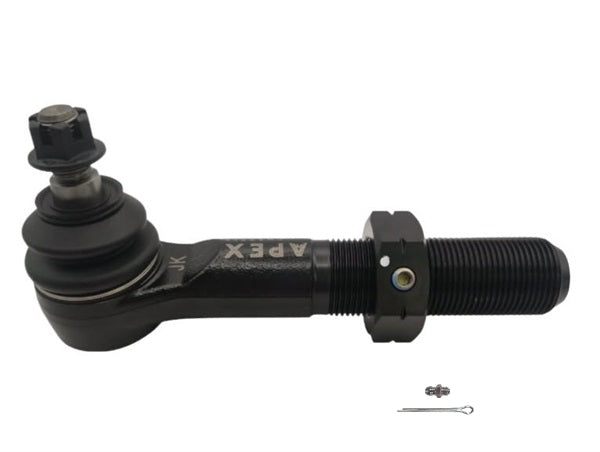

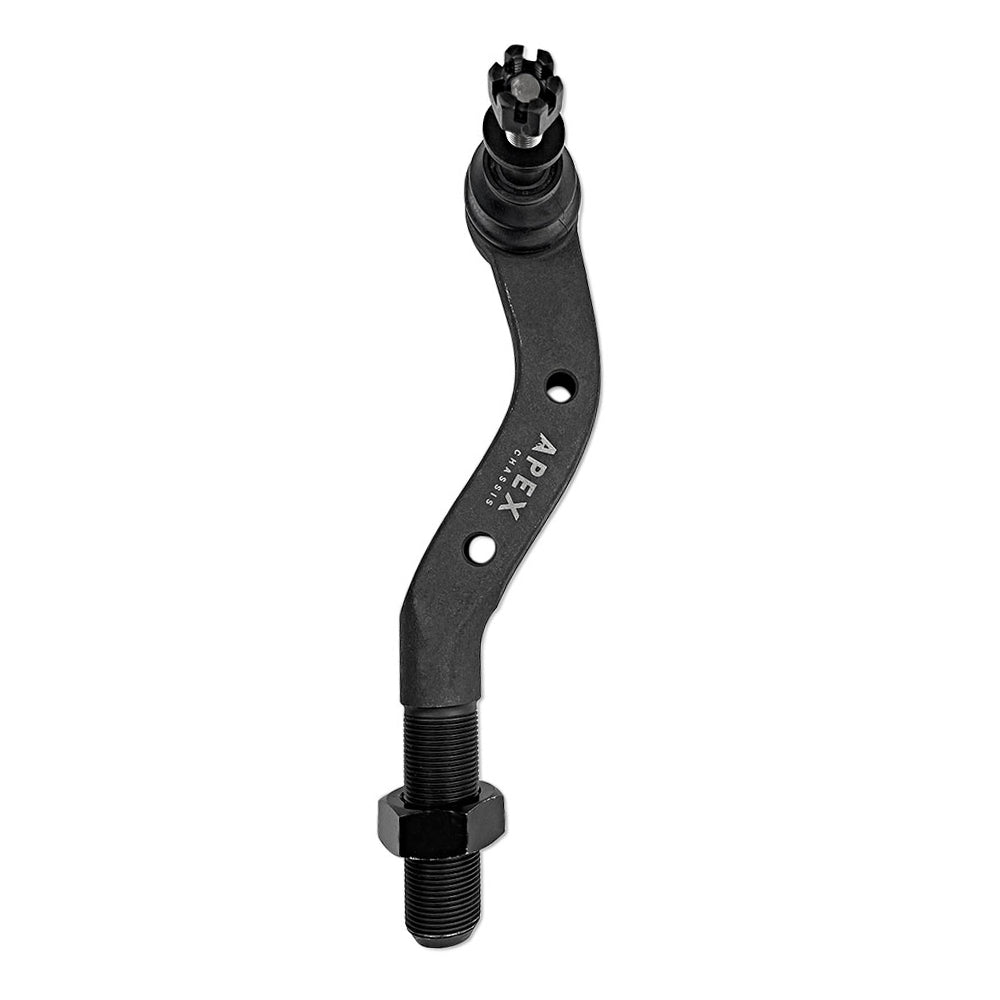

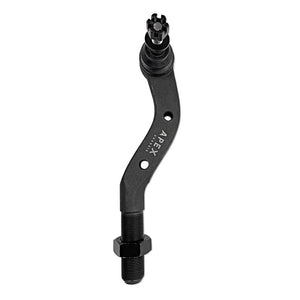

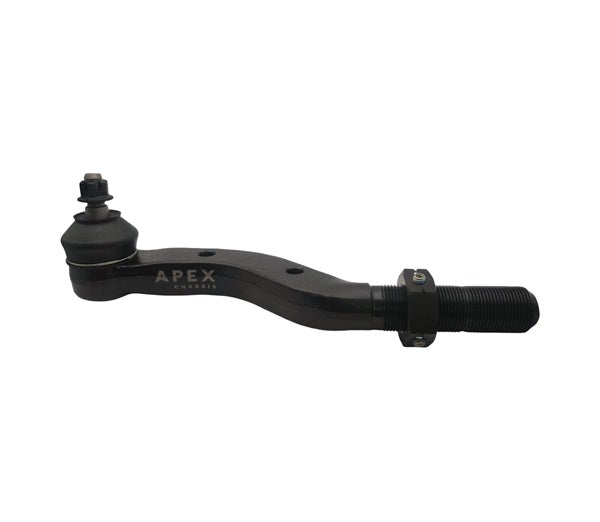

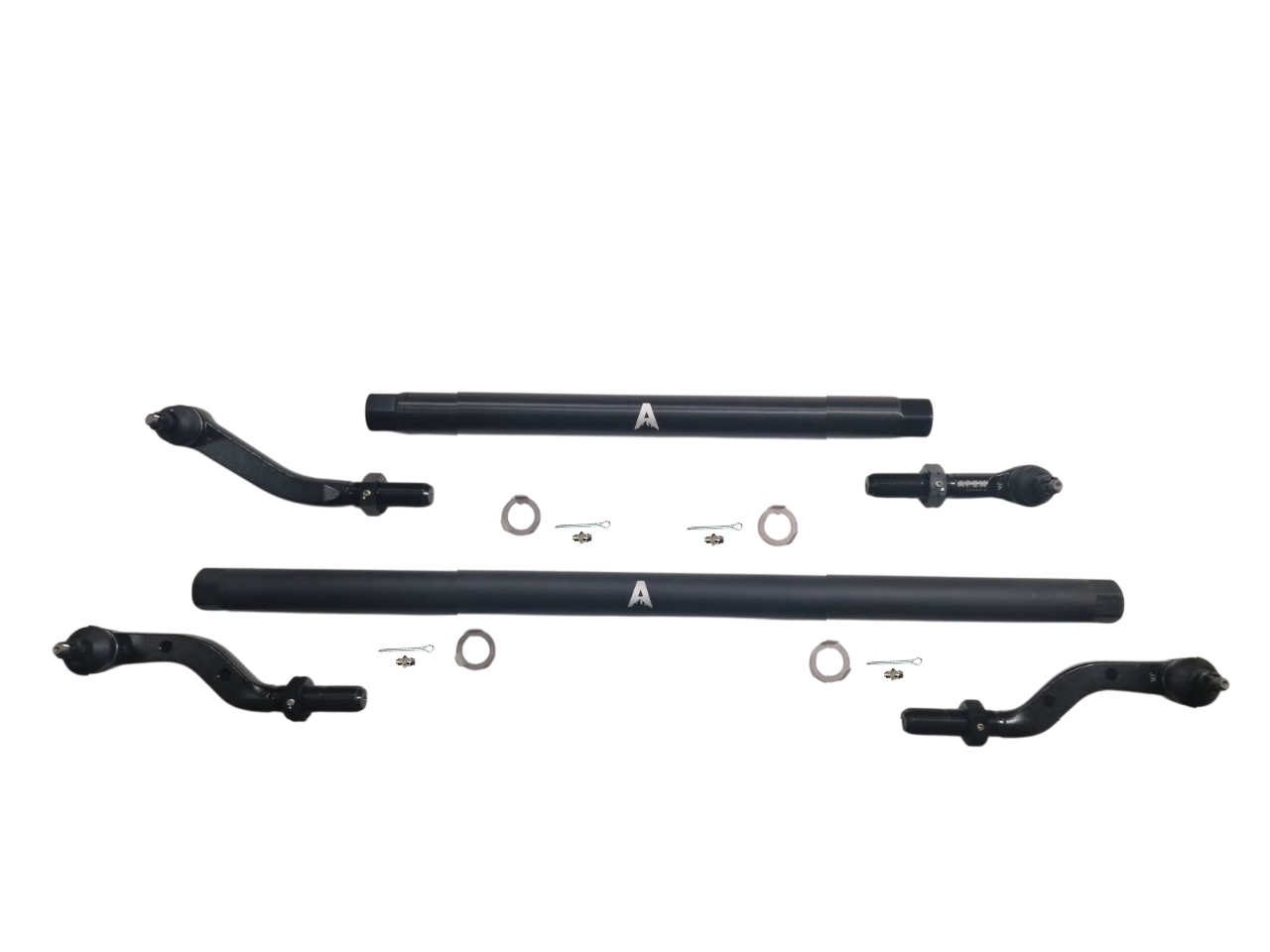

This is a complete replacement steering kit for your 2007-2018 Jeep Wrangler JK. It includes the tie rod (black anodized aluminum) which is also the adjusting sleeve, and left & right forged steel tie rod ends, the drag link (black anodized aluminum) which is also the adjusting sleeve, and left & right forged steel drag link ends. Plus 4 Ninja Lock Washers.

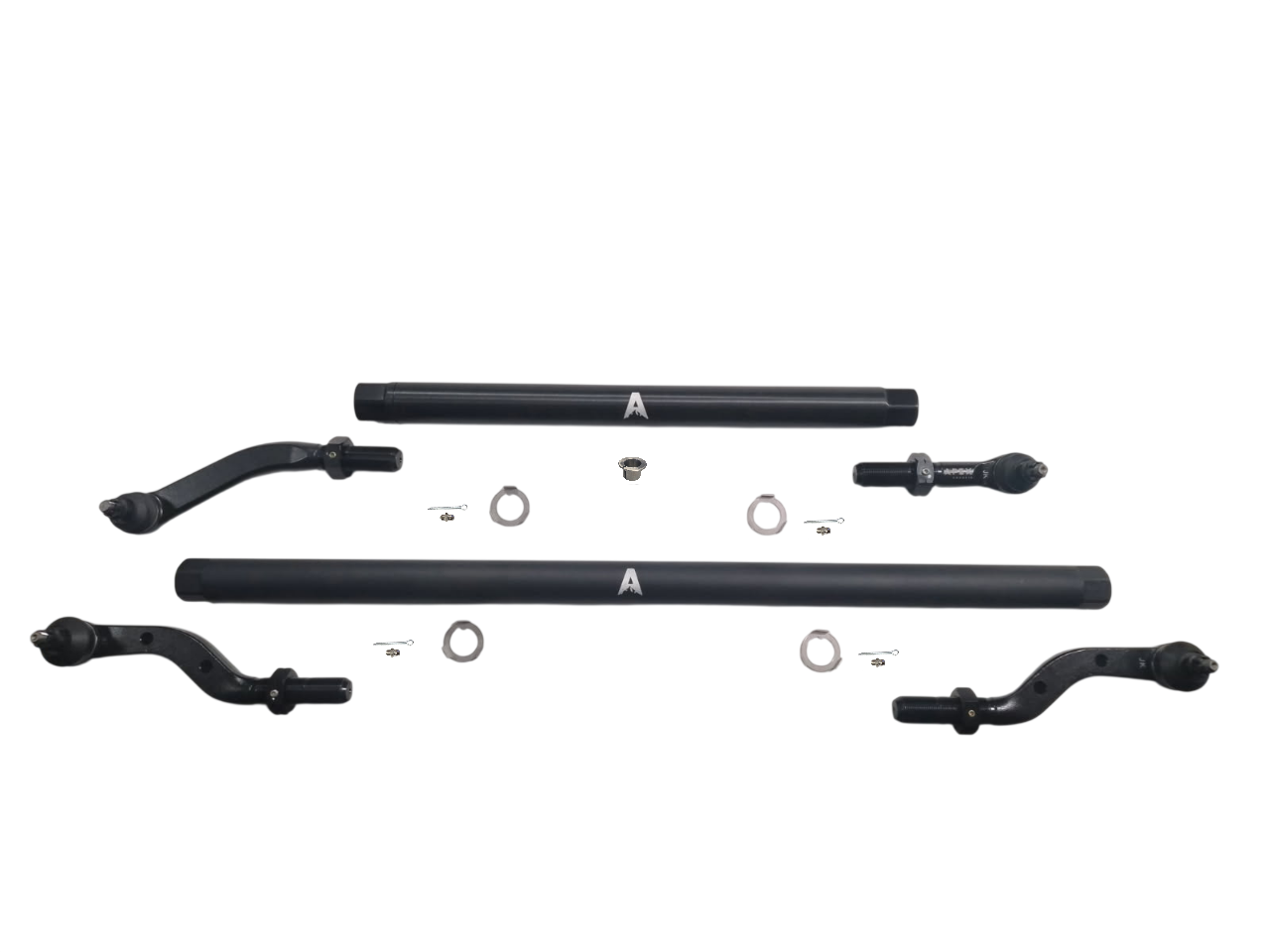

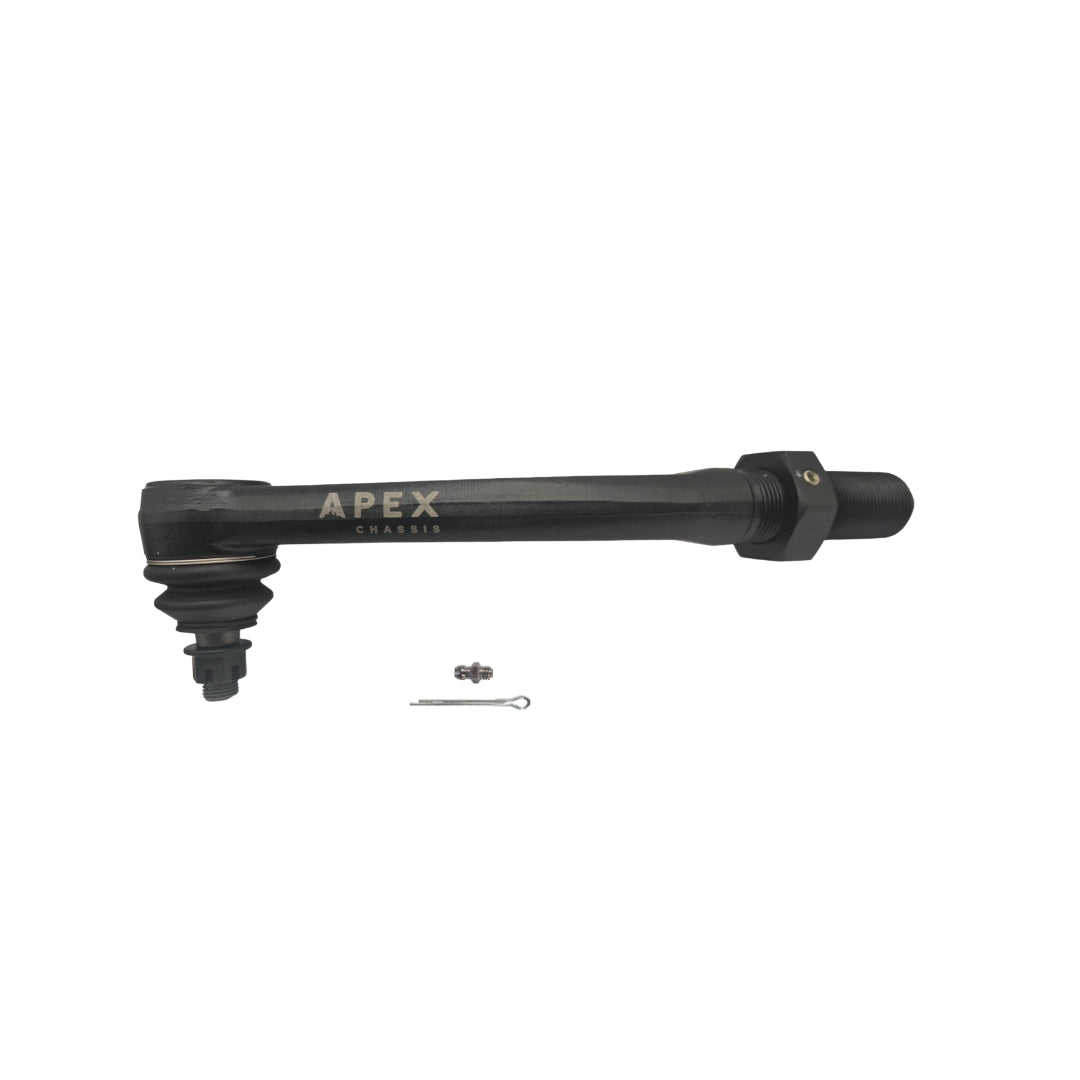

Depending on the options you choose above, it can be sent as an under knuckle mount (standard) or over knuckle mount (flip kit). All Flip Kits include the taper sleeve!!

Note: taper sleeves require the knuckle drag link mount to be drilled through with a straight 7/8" drill bit.

It does not include the steering stabilizer bracket which you will need to choose in the options above based on the steering stabilizer you use.

Wheels and Spacers: If you run AEV or stock Rubicon wheels, you'll need a 1.5" spacer. This kits works with a 17" wheel with a 4.75" backspacing or less. We recommend the steering stabilizer be fitted in the stock location, or a relocation kit may be required.

FITMENT:This steering system fits stock Dana 30/44 axles. If you have done any major modifications give us a ring at 480-470-5500 or email us at sales@apexchassis.com to discuss. This will fit most modifications, but we want to make sure before shipping. You may also want to discuss with your local Jeep shop to make sure all your modifications are compatible.

If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well, just contact us to order.

Wrenches needed:

  • Jam Nuts & Adjusting Rods:46mm x 2 (Apex part KIT503 46mm/48mm) or select 'YES" to the Jam Nut Wrench option above.
  • Castle Nuts: 19mm

The Special Sauce:

HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
    BALL STUDS
    • SAE 4140 Hot Forged Chromoly Ball Studs: For strongest possible metallurgy.
    • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
    • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
    • Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued. (Installer Choice).
    BEARING DESIGN
    • Rugged Metal to Metal Bearing.
    BOOTS
    • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
    • Accordion Boot: ideal for high-articulation components, more flexibility means longer life.
    HARDWARE
    • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
    • Castle Nut: Industry standard where high vibration loads occur.
    ADJUSTING RODS
    • 2" 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
    LUBRICATION
    • Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
    • Greaseable: Because it should be.
    • Pre-Greased: Just in case you forget, we have you covered.
    • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
    • Zerk Fittings: Included for every application.
    SPECIAL FEATURES

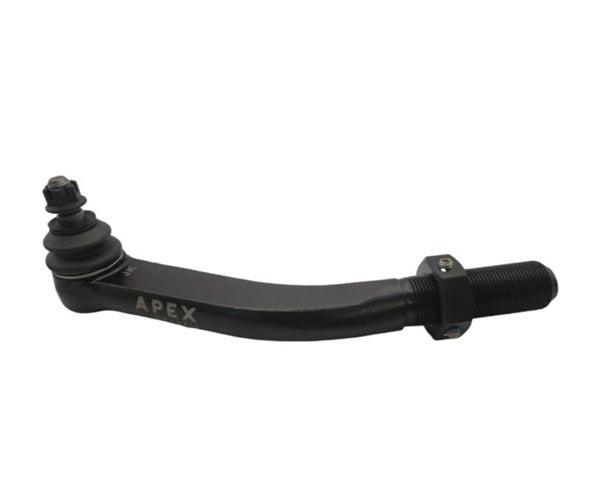

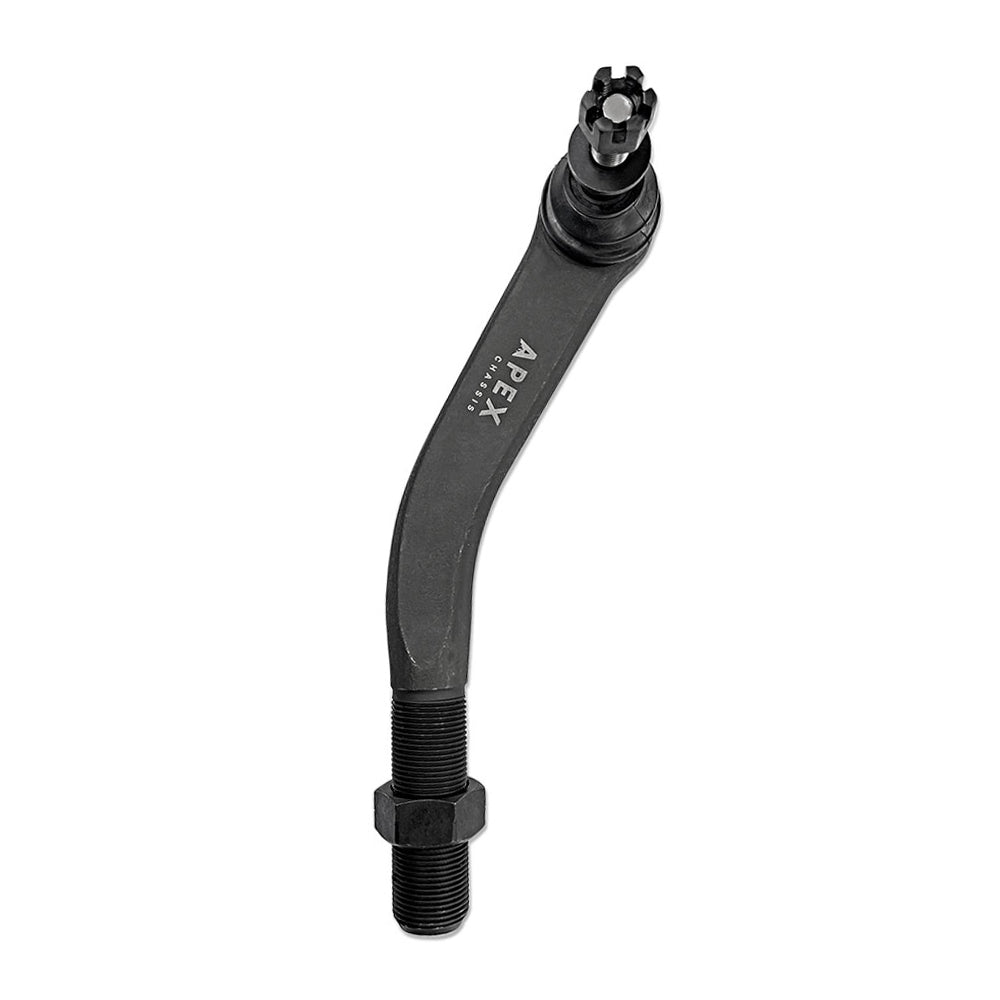

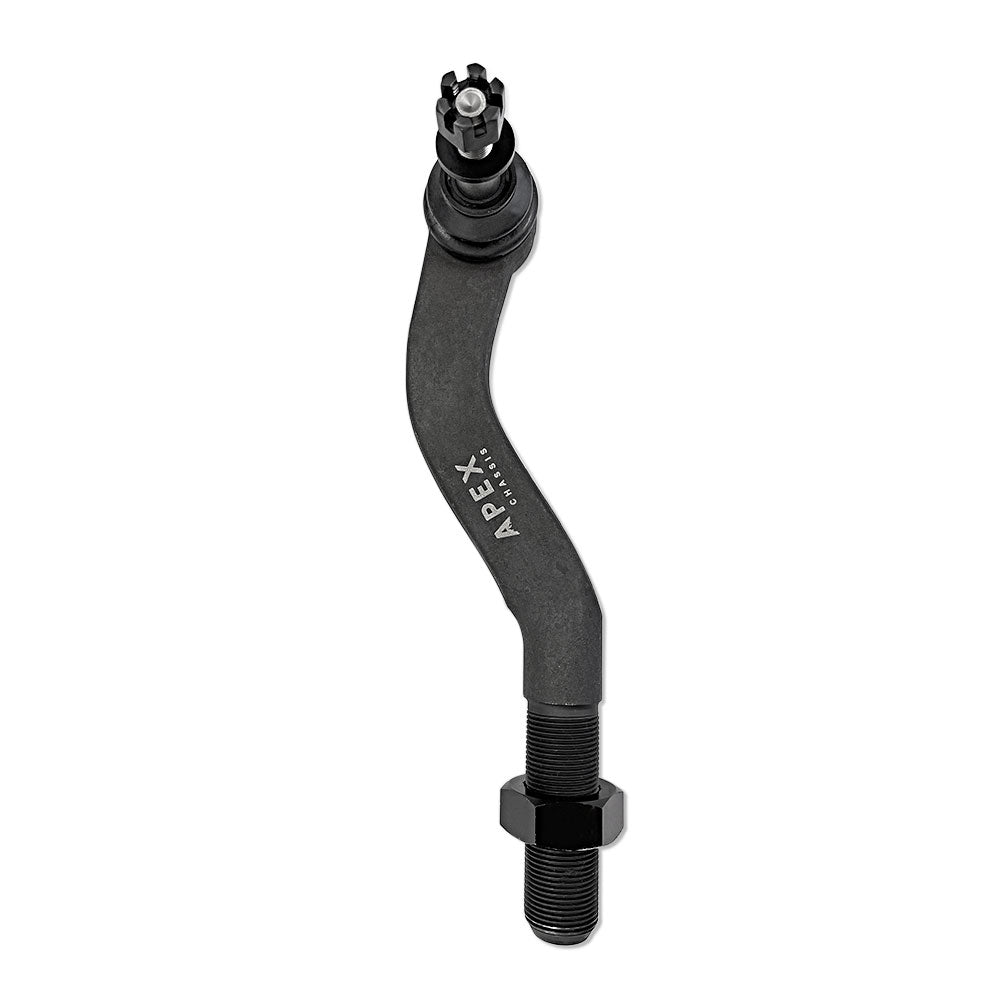

    • Tie Rod Ends & RH Drag Link End - Flopper Stoppers Built In: Unlike the poly hockey pucks that most brands use, our heavy duty "Flopper Stoppers" are built into the tie rod end and drag link end bearings, giving you an industry leading 27 degrees of stud swing left and right and only 2 degrees of stud swing forward and aft, keeping your tie rod and drag link from rotating and flopping. The competitor hockey puck style systems also call for the removal of the tie rod end boot, which is there to keep the dirt out and the grease in.

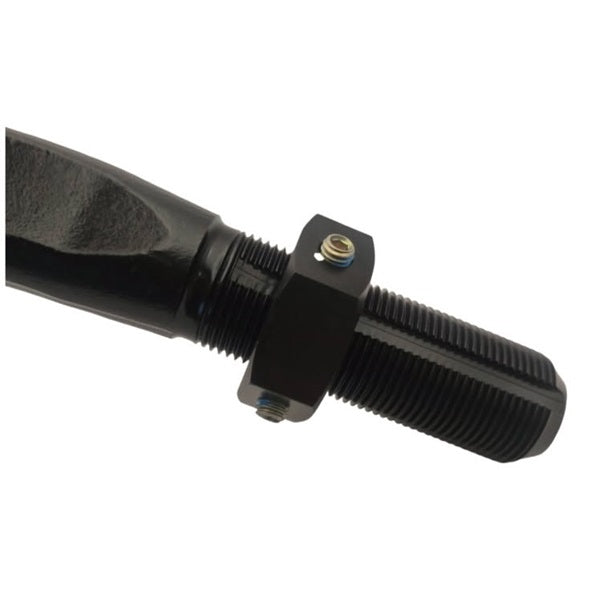

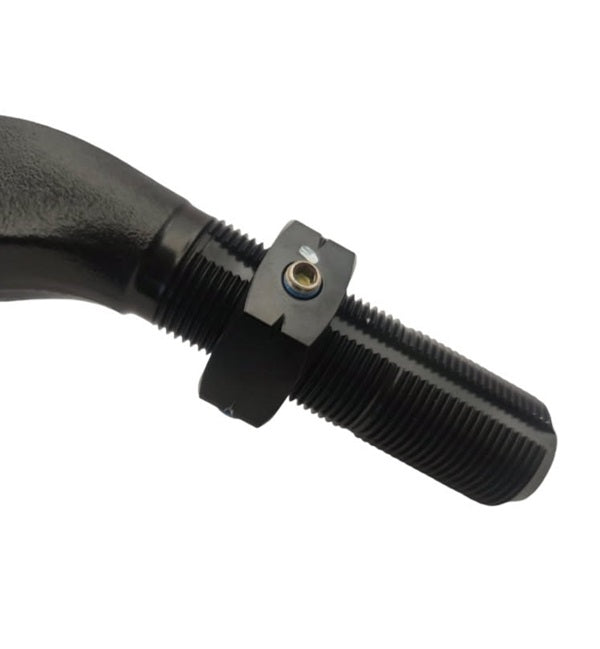

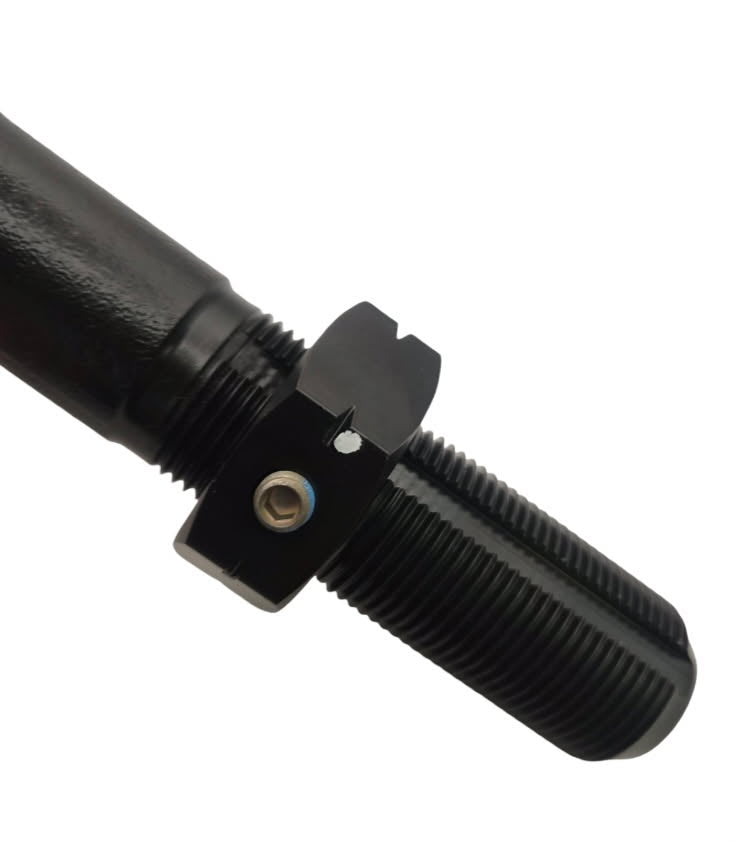

    • Ninja Washers (tm):An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end!
    • Minimum Engagement Mark on Drag Link End Threads:If this mark in the thread of the drag link is showing it means you are beyond the safe engagement of threads into the adjusting sleeve. You may be lifted too high and need to switch to a flip kit or you may need to equal out the adjusting sleeve between the two ends.

    Where It Fits:

    Vehicle Position: Front
    Quantity per Vehicle: 1

    What It Fits:

    Jeep Wrangler JK (2007-2018) 4WD

    Installation Instructions

    Customer Reviews

    Based on 4 reviews
    75%
    (3)
    25%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    L
    Luis Rodriguez (Orlando, US)

    Very solid kit and customer service is above and beyond

    J
    Jonathan Tanner (Seattle, US)
    Jk 2.5 Ton Steering Kit

    Great quality and look. The instructions that were included with my kit were incorrect, or at least I was unable to install exactly as instructed due to the inclusion of a flip kit.
    I really enjoy the ability to adjust my alignment with the turn of the sleeve and the use of the ninja washers to maintain its position.
    Overall, I am very happy with my purchase.

    B
    B.R. (Lubbock, US)
    Love this steering kit!!! My Jeep drives great!!!

    Since installing the Apex 2.5 ton aluminum steering kit, my Jeep drives better than ever. The kit arrived quickly and was well-protected during shipping. It's significantly larger than the stock kit and is of very high quality. Additionally, the customer service was exceptional. I am very impressed and highly recommend

    G
    Gary Doak
    Impressive

    The quality of the components of this kit is impressive. Regarding the instructions, the logical side of my brain assumes the end of the tie rod and the end of the drag beam marked with the left hand threads would both be installed on the same side of the vehicle. This makes the the tie rod backwards and wouldn’t fit that direction anyway, but it caused some consternation and wasted time on my part. Clarification in the instructions regarding this would be helpful. However, the company’s phone was answered right away and the gal on the line was quite knowledgeable and helpful. Kudos for customer service! Probably way overkill for my build, but preparing for the future!
