ST101 - Jeep JK - FOX ATS Steering Stabilizer

apexchassis.com\/collections\/apex-chassis-parts\/products\/st101-jk-fox-ats-steering-stabilizer

Be sure to check vehicle fitment below

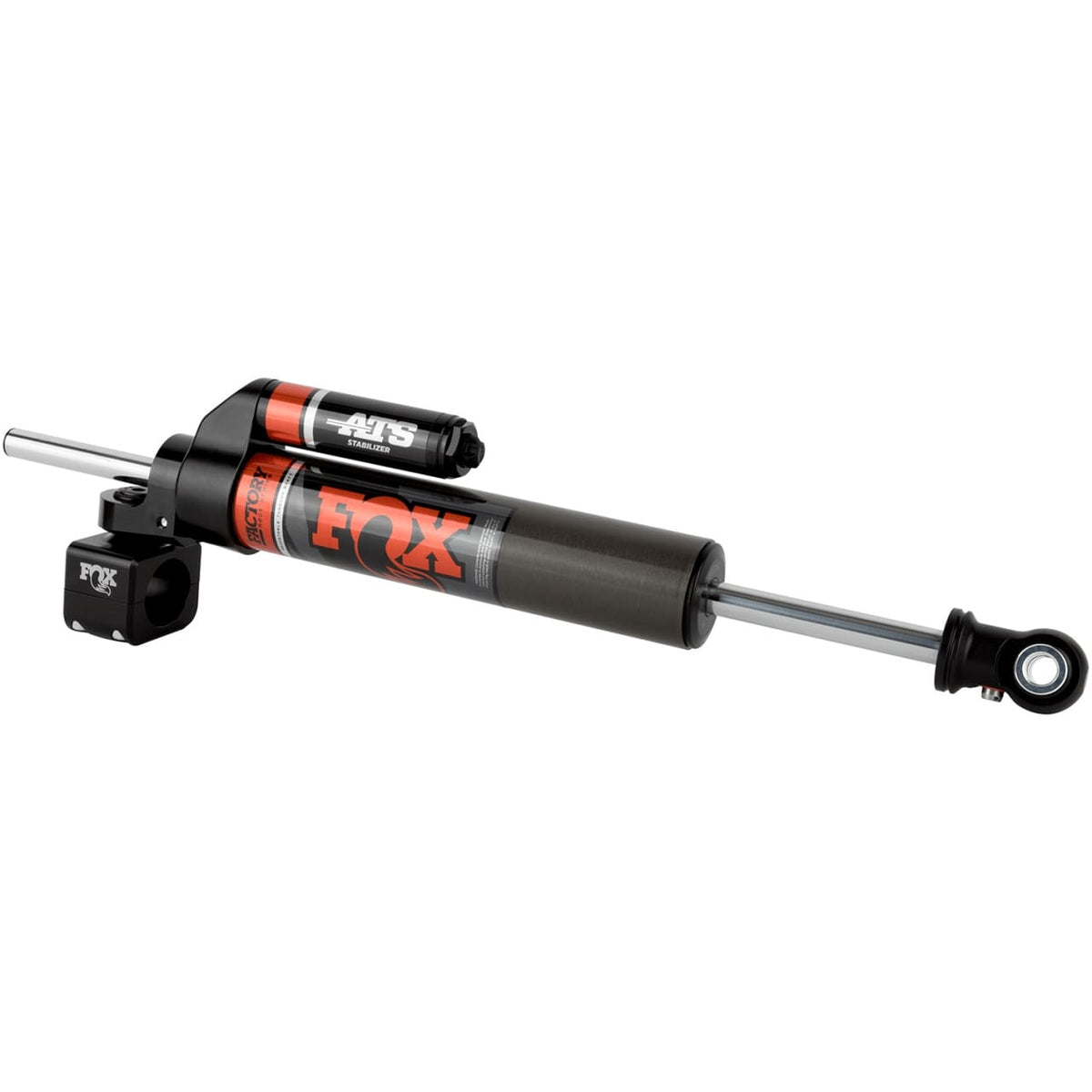

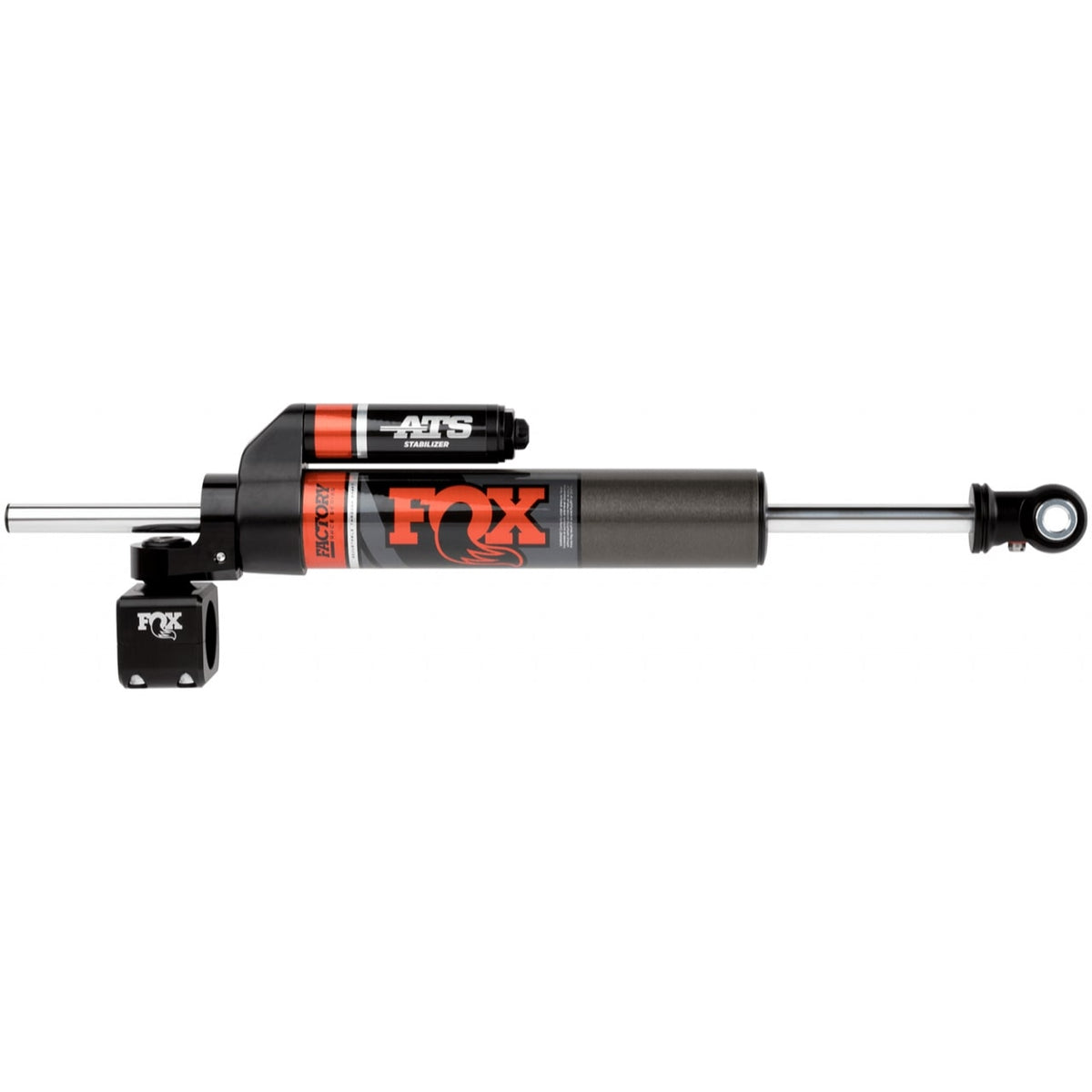

The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer offers unrivaled steering control and a striking high tech appearance. The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel.

NOTE:
OE clamp (1 3/8") will not fit Apex steering equipment
You will have to remove clamp and purchase 2"(DC104 or DC150) or 1.5"(DC114 or DC152) to attach to tie rod adjustable sleeve
Also available is the Synergy Relocation Bolt (XP300)
After installing do full lock to both sides and make sure stabilizer makes no contact anywhere

Where it fits:
Vehicle Position: Front
Quantity per vehicle: 1

What it fits:
Jeep JK 2007-2018

Warranty:
All warranties will be through FOX

The Special Sauce:

SPECIAL FEATURES
  • Travel (IN): 8.120
  • Compressed (IN): 14.090
  • Extended (IN): 22.200
  • Top Mount: Tie Rod Clamp
  • Bottom Mount: Eyelet
BODY
  • 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
RESERVOIR
  • External reservoir design separates shock oil from the high-pressure nitrogen components, black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT
  • 5/8" hard chrome plated heat-treated alloy steel
PISTON
  • Race-developed high-flow piston design
SEALS
  • Redundant sealing pack system main seal, wiper seal, scraper seal
ADJUSTMENTS
  • Adjuster - 24 clicks of adjustability
