KIT125 - Jeep Wrangler JL & Gladiator JT - 2.5 Ton Tie Rod & Drag Link Assembly - Polished Aluminum

Your Differential Model (Pick One)
Do You Need A Flip Kit? (Pick One)
Would you like to include JAM nut wrenches?+ $40.00
Back in stock - good to go!!
apexchassis.com\/collections\/jeep\/products\/kit125-jeep-jl-steering-kit-pol-aluminum

Be sure to check vehicle fitment below

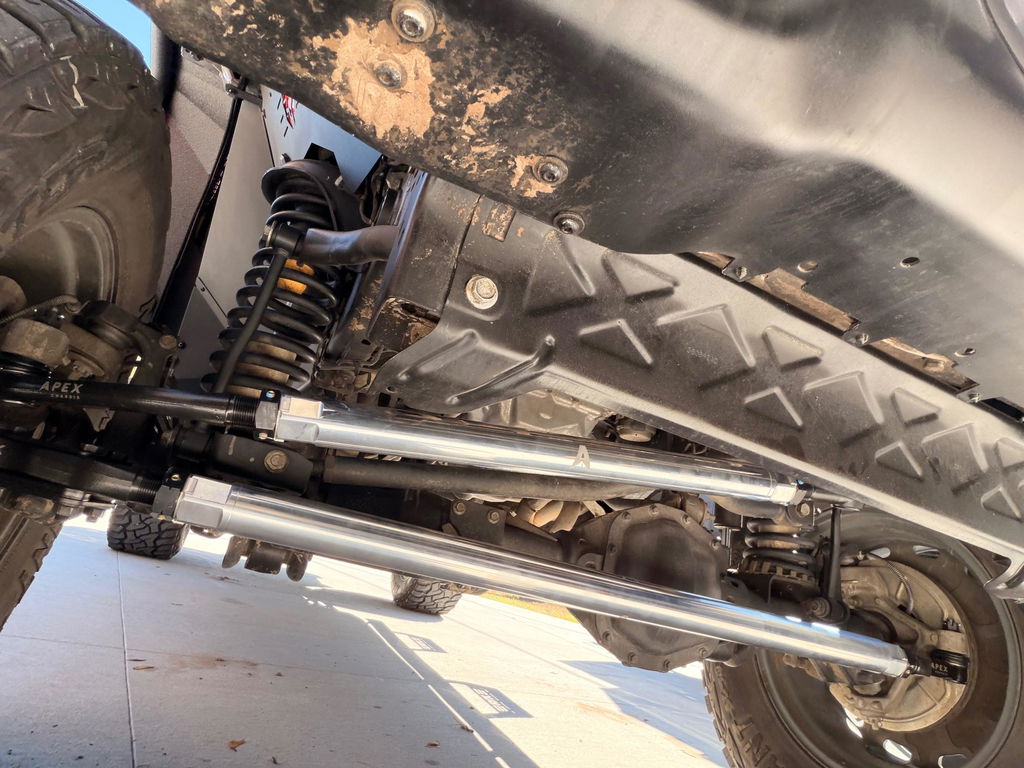

This is a complete replacement steering kit for your 2018-2024 Jeep Wrangler JL or 2019-2024 Gladiator JT. It includes the tie rod (polished aluminum) which is also the adjusting sleeve, and left & right forged steel tie rod ends, the drag link (polished aluminum) which is also the adjusting sleeve, and left & right forged steel drag link ends. Plus 4 Ninja Lock Washers.

Depending on the options you choose above, it can be set as an under knuckle mount (standard) or over knuckle mount (flip kit). All Flip Kits include the taper sleeve!!

Note: taper sleeves require the knuckle drag link mount to be drilled through with a straight 7/8" drill bit.

It does not include the steering stabilizer bracket which you will need to choose in the options above based on the steering stabilizer you use.

Dana 44 narrow axle or wide axle ??? Unfortunately, this can be confusing. NARROW axle Dana 44s are unusual, but the tie rod measures 57 1/2" to 58 1/2" ball-stud center to ball-stud center. The standard WIDE axle Dana 44 tie rod measures 60 1/2" to 61 1/2" ball-stud center to ball-stud center. If your Jeep has a narrow axle Dana 44, PLEASE select the Dana 30, which has the correct length tie rod.

It does not include the steering stabilizer bracket which you will need to choose in the options above based on the steering stabilizer you use.

Wheels and Spacers: If you run AEV or stock Rubicon wheels, you'll need a 1.5" spacer. This kits works with a 17" wheel with a 4.75" backspacing or less. We recommend the steering stabilizer be fitted in the stock location, or a relocation kit may be required.

FITMENT:This steering system fits stock Dana 30/44 axles. If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well, just contact us to order.

Wrenches needed:

  • Jam Nuts & Adjusting Rods: 46mm x 2 (Apex part KIT503 46mm/48mm) or select 'YES" to the Jam Nut Wrench option above.
  • Castle Nuts: 19mm

The Special Sauce:

HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
    BALL STUDS
    • SAE 4140 Hot Forged Chromoly Ball Studs: For strongest possible metallurgy.
    • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
    • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
    • Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued. (Installer Choice).
    BEARING DESIGN
    • Rugged Metal to Metal Bearing.
    BOOTS
    • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
    • Accordion Boot: ideal for high-articulation components, more flexibility means longer life.
    HARDWARE
    • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
    • Castle Nut: Industry standard where high vibration loads occur.
    ADJUSTING RODS
    • 2" 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
    LUBRICATION
    • Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
    • Greaseable: Because it should be.
    • Pre-Greased: Just in case you forget, we have you covered.
    • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
    • Zerk Fittings: Included for every application.
    SPECIAL FEATURES
    • Tie Rod Ends & RH Drag Link End - Flopper Stoppers Built In: Unlike the poly hockey pucks that most brands use, our heavy duty "Flopper Stoppers" are built into the tie rod end and drag link end bearings, giving you an industry leading 27 degrees of stud swing left and right and only 2 degrees of stud swing forward and aft, keeping your tie rod and drag link from rotating and flopping. The competitor hockey puck style systems also call for the removal of the tie rod end boot, which is there to keep the dirt out and the grease in.
    • Ninja Washers (tm):An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end!
    • Minimum Engagement Mark on Drag Link End Threads:If this mark in the thread of the drag link is showing it means you are beyond the safe engagement of threads into the adjusting sleeve. You may be lifted too high and need to switch to a flip kit or you may need to equal out the adjusting sleeve between the two ends.

    Where It Fits:

    Vehicle Position: Front
    Quantity per Vehicle: 1 Kit

    What It Fits:

    Jeep Wrangler JL (2018-2024) 4WD
    Jeep Gladiator JT (2019-2024) 4WD

    Installation Instructions

    Customer Reviews

    Based on 39 reviews
    95%
    (37)
    3%
    (1)
    3%
    (1)
    0%
    (0)
    0%
    (0)
    C
    Chhorn Savvin (Cargo) (Phnom Penh, KH)
    Jeep Wrangler JL 2021

    The quality of the products exceeded expectations, and the package was very well protected. Excellence product.

    D
    Daniel Villavecer (Los Angeles, US)

    Excellent performance but ends became rusted within 1 week.

    M
    Mark Hurd (El Paso, US)
    Install of kit # 125

    My son came to my house and installed the Apex Tir Rod and Drag Link . He was really pleased with house easy everything went to get her . I am out of town but I am anxious to get home and test drive it. Hopefully the dreaded Death Wobble is gone . My Son said the best part of the install was lining up the Apex emblems so they faced outward and could be seen easily. Love the quality .

    S
    Skipper Wiseman
    Well Built

    Quick service perfectly wrapped and a beautiful peice. 100% would recommend.

    M
    Mark Butkus (East Stroudsburg, US)
    Great product!

    The kit looked amazing performs amazing. I have confidence in these parts and I love the ease of adjusting! I would have given 5 stars but 2 things stuck out to me which is me being picky as hell. 1) slight bit of noise on really bumpy surfaces it’s just from the joints hitting the end of the no flop, not a huge deal at all no funny feelings everything is tight. 2) my one 46mm/48mm jam nut wrench actually stretched out on me when I was breaking the jam nut free fine tuning my drag link. Over all quality product and a happy costumer will continue to purchase new parts down the road.
