KIT146 - Jeep Wrangler JK - 1 Ton Tie Rod Kit - Steel

Please note: Steel connecting rods are not designed for rock crawling. If you hit them heavily on a rock, they will likely bend and are therefore NOT WARRANTIED against impact damage. If you intend to rock crawl, please consider our aluminum connecting rod options.
apexchassis.com\/collections\/jeep\/products\/kit146-jeep-wrangler-jk-1-ton-tie-rod-kit-steel

Be sure to check vehicle fitment below

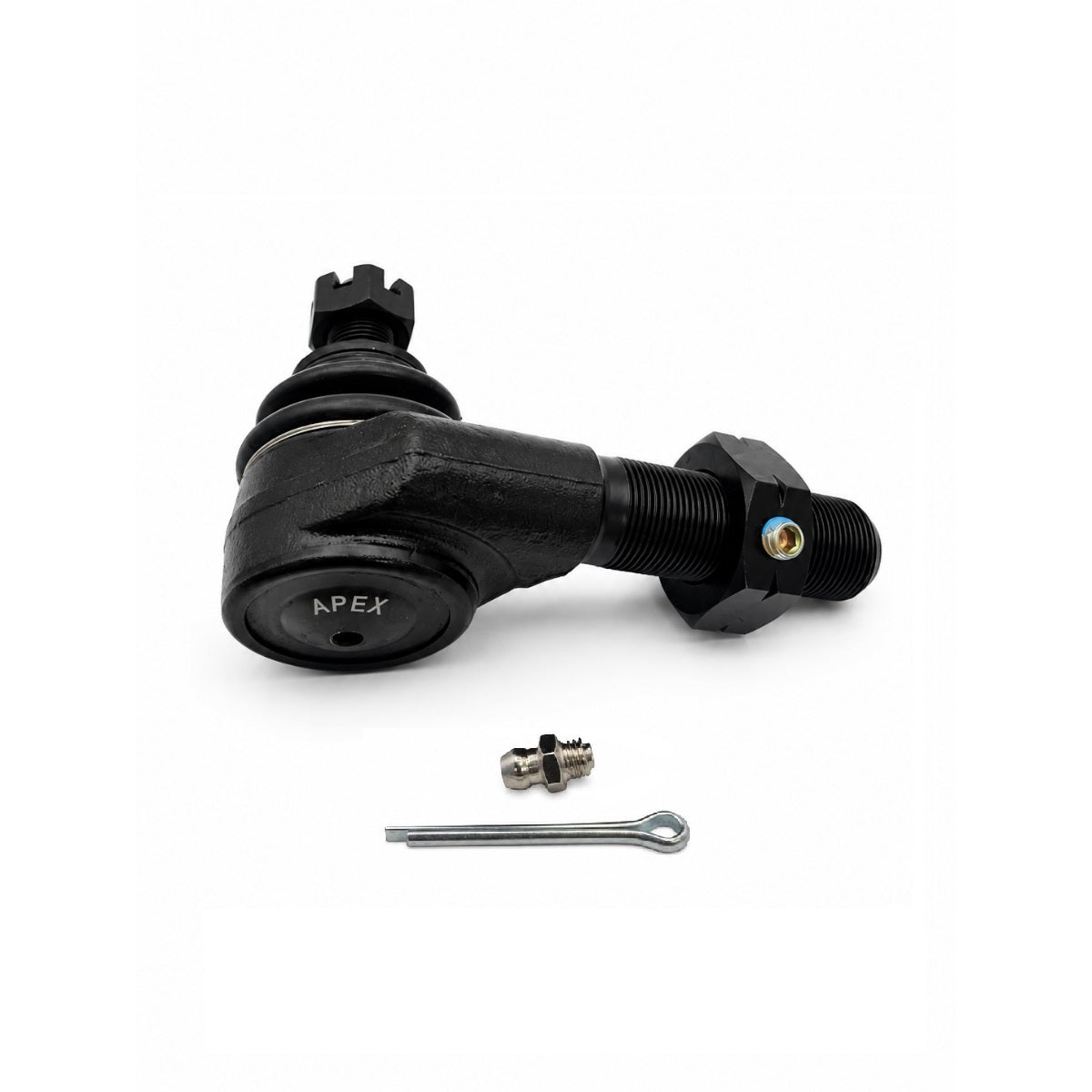

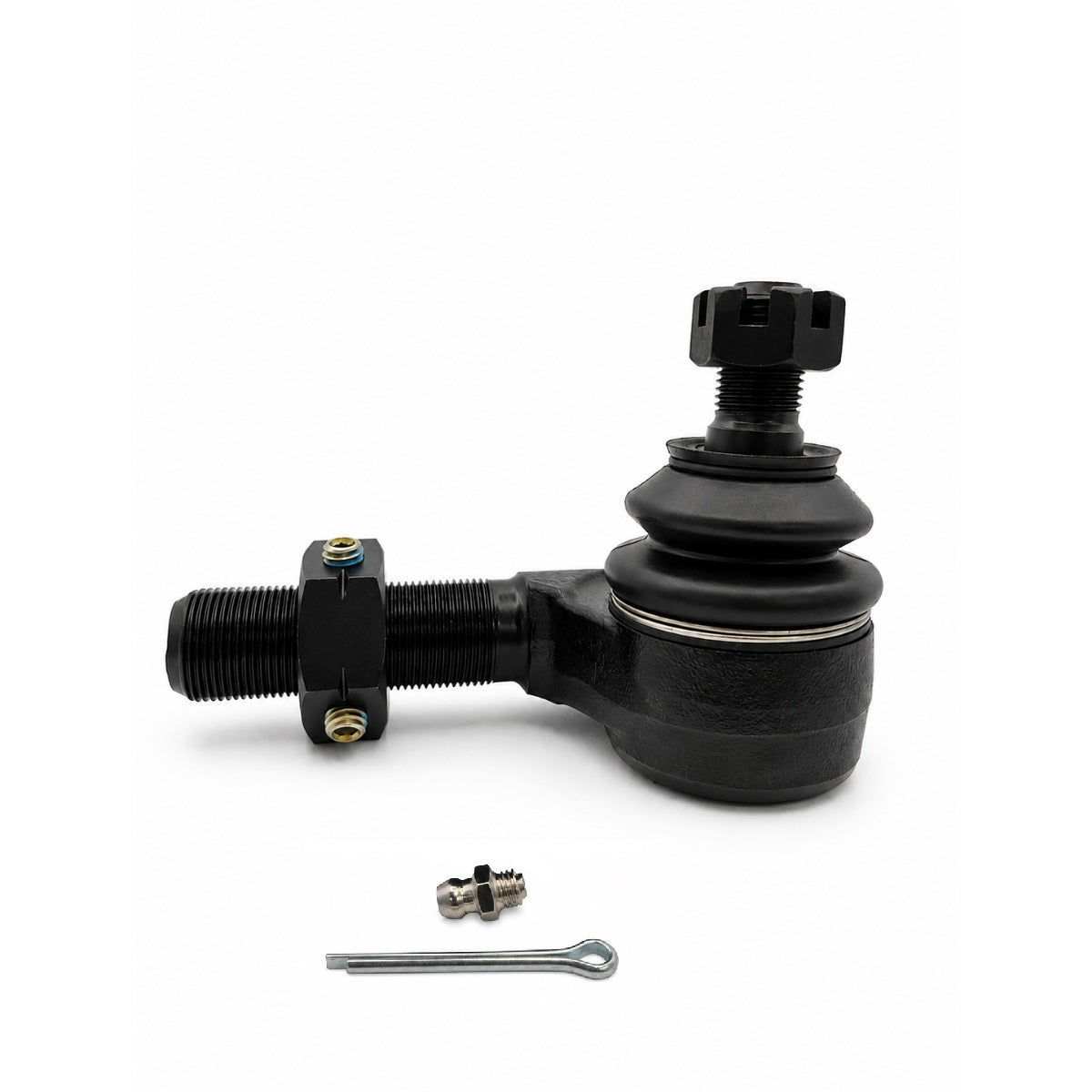

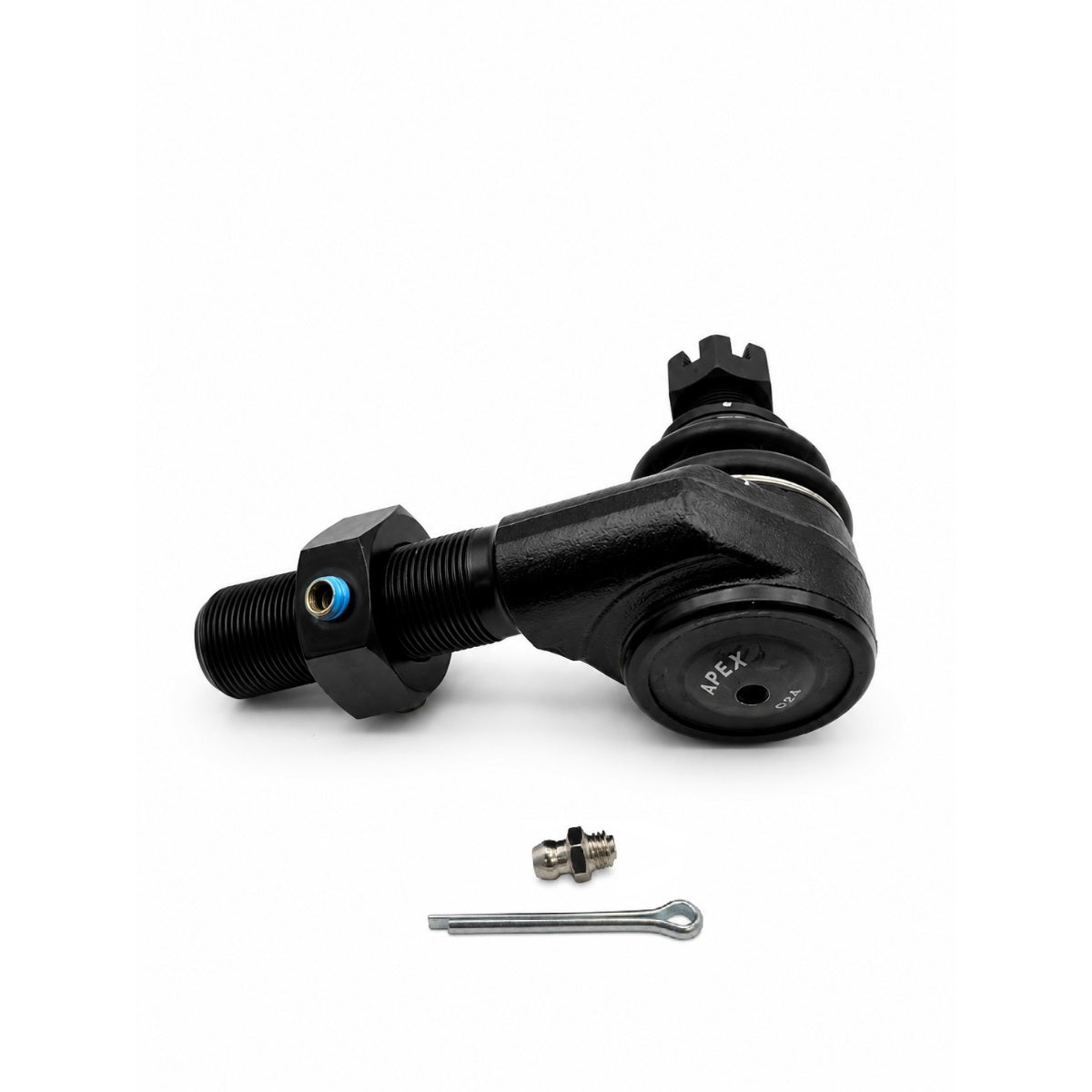

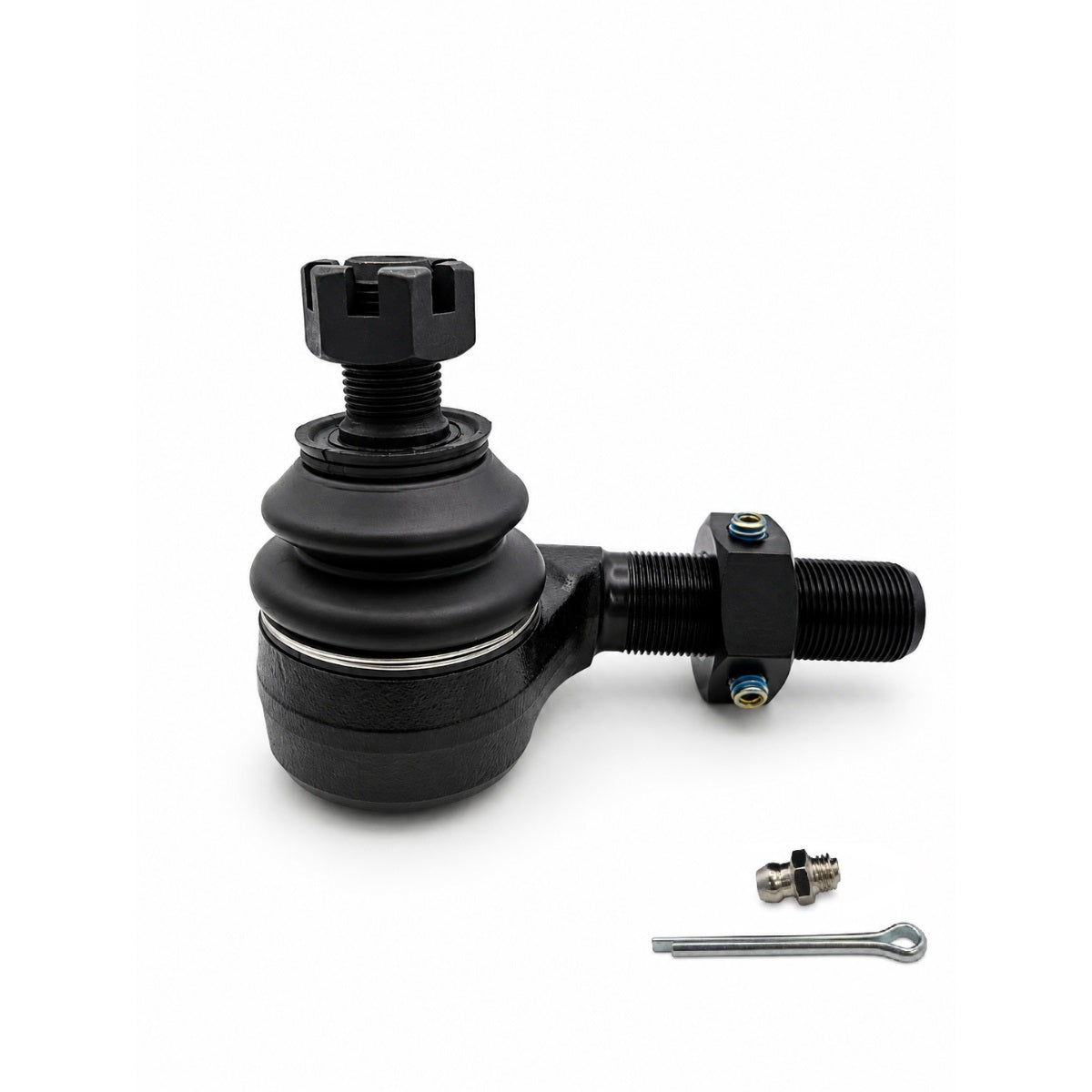

This is a complete "1 Ton" upgraded tie rod kit for your 2007-2018 Jeep Wrangler JK. It includes the tie rod (DOM Steel) which is also the adjusting sleeve, and left & right forged steel tie rod ends, plus 2 Ninja Lock Washers.

It does not include the steering stabilizer bracket which you will need to choose in the options based on the steering stabilizer you use ,shown after adding the KIT to your cart.

FITMENT:

Wheels and Spacers:If you run AEV or stock Rubicon wheels, you'll need a 1.5" wheel spacer. This kits works with a 17" wheel with a 4.75" backspacing or less. We recommend the steering stabilizer be fitted in the stock location, or a relocation kit may be required.

Differentials & Mods:This steering system fits stock Dana 30/44 axles. If you have done any major modifications give us a ring at 480-470-5500 or email us at sales@apexchassis.com to discuss. This will fit most modifications, but we want to make sure before shipping. You may also want to discuss with your local Jeep shop to make sure all your modifications are compatible.

If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well, just contact us to order.

The Special Sauce:

HOUSING
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
BALL STUDS
  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
BEARING DESIGN
  • Rugged Metal to Metal Bearing
BOOTS
  • CR Rubber Boots:The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.
HARDWARE
  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.
ADJUSTING RODS
  • E-Coat Finish: Durable e-coat treatment
  • 1.5" DOM SAE 1020 Tube: Heavy walled steel tubing provides the tightest most robust steering on the market.
LUBRICATION
  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.
SPECIAL FEATURES

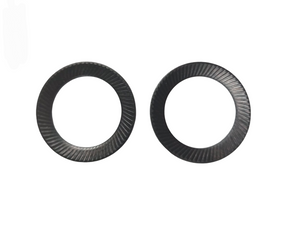

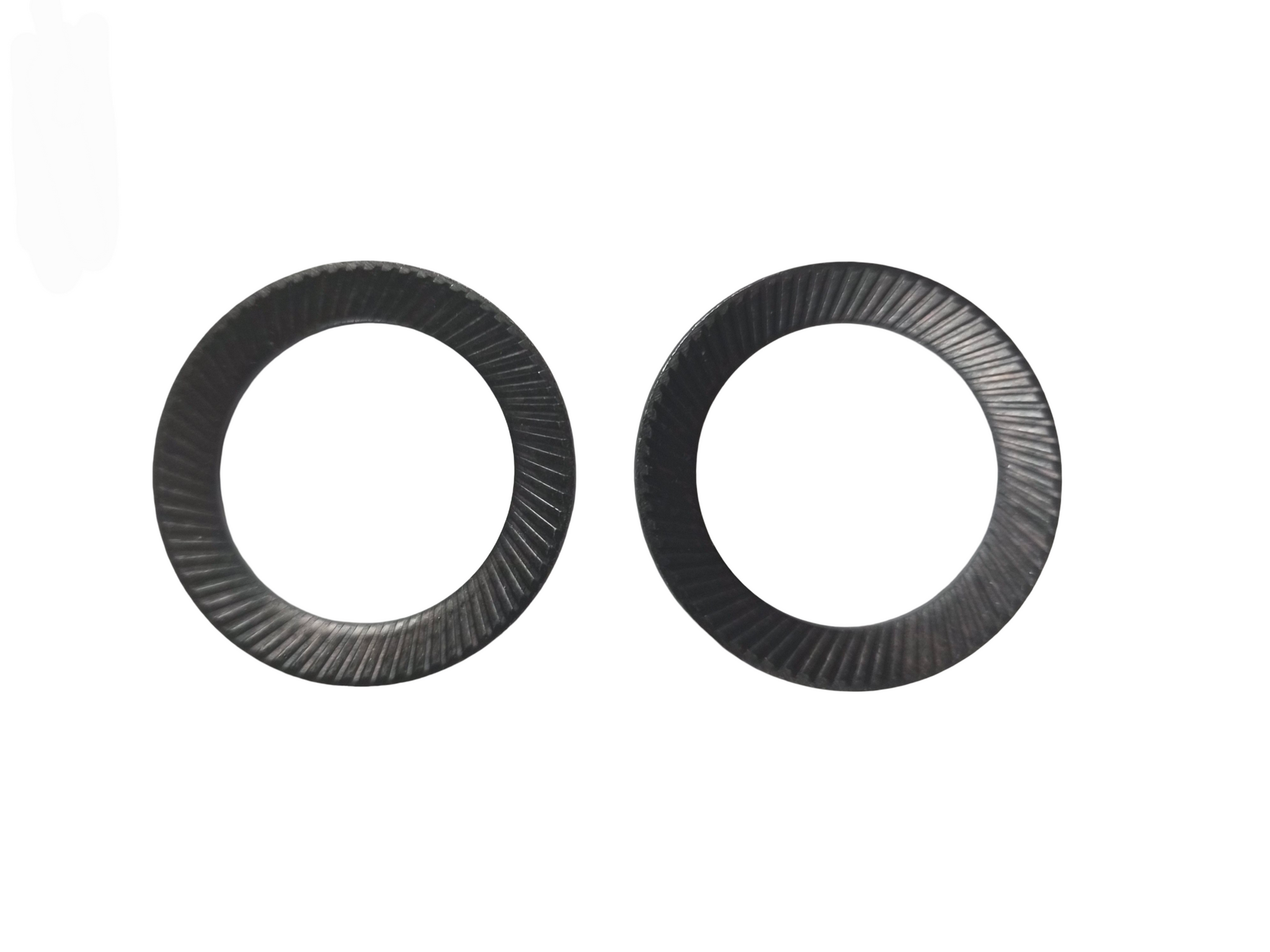

  • Ninja Washers (tm): An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end.

Installation Instructions

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Atcguynate (Hillsboro, US)
Perfect fit and excellent design

This kit fit my 2011 jk perfect. No mods necessary. After i set up my toe and steering angle, the first test was amazing. That squishy steering feel was completely gone and the steering felt very defined and precise. This is a different jeep now thanks to this kit. I highly recommend to all my friends.
