KIT130 - Jeep Wrangler JK 2.5 Ton ProLock Steering Kit - Steel
Jeep Extreme Duty Steering

KIT130 - Jeep Wrangler JK 2.5 Ton ProLock Steering Kit - Steel

Ready to Roam
$895.00
Out of stock until late November
Do You Need A Flip Kit (Pick One)
Ships in Ships in
10 days
Lifetime Lifetime
warranty
Extreme Extreme
duty
Designed, engineered, and assembled in the USA. Designed, engineered, and assembled in the USA.

Description

Please note: Steel connecting rods are not designed for rock crawling. If you hit them heavily on a rock, they will likely bend and are therefore NOT WARRANTIED against impact damage. If you intend to rock crawl, please consider our aluminum connecting rod options. Check out our blog post on steel vs aluminum.

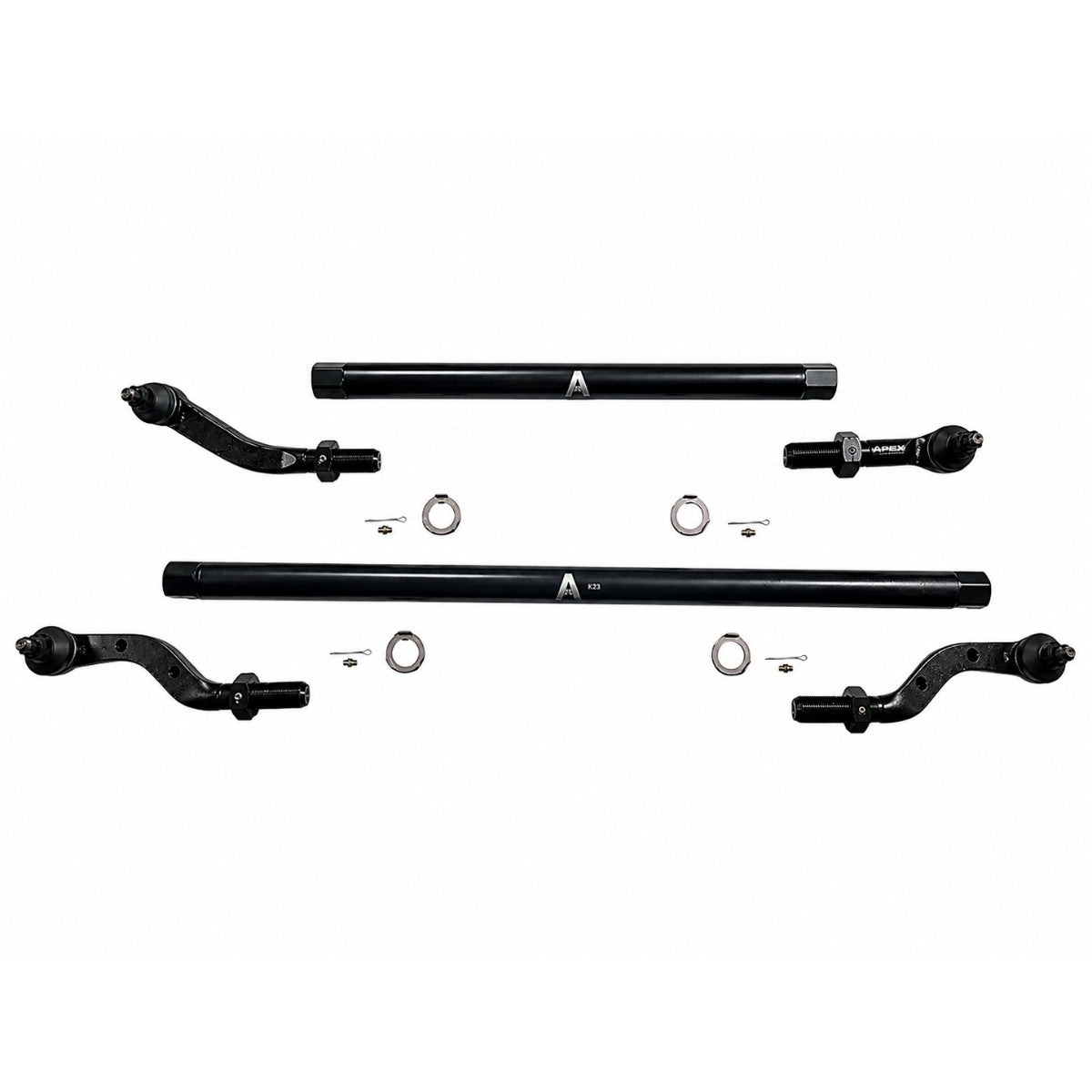

This is a complete replacement steering kit for your 2007-2018 Jeep Wrangler JK. It includes the tie rod (DOM steel) which is also the adjusting sleeve, and left & right forged steel tie rod ends, the drag link (DOM steel) which is also the adjusting sleeve, and left & right forged steel drag link ends. Plus our NEW ProLock Washers.

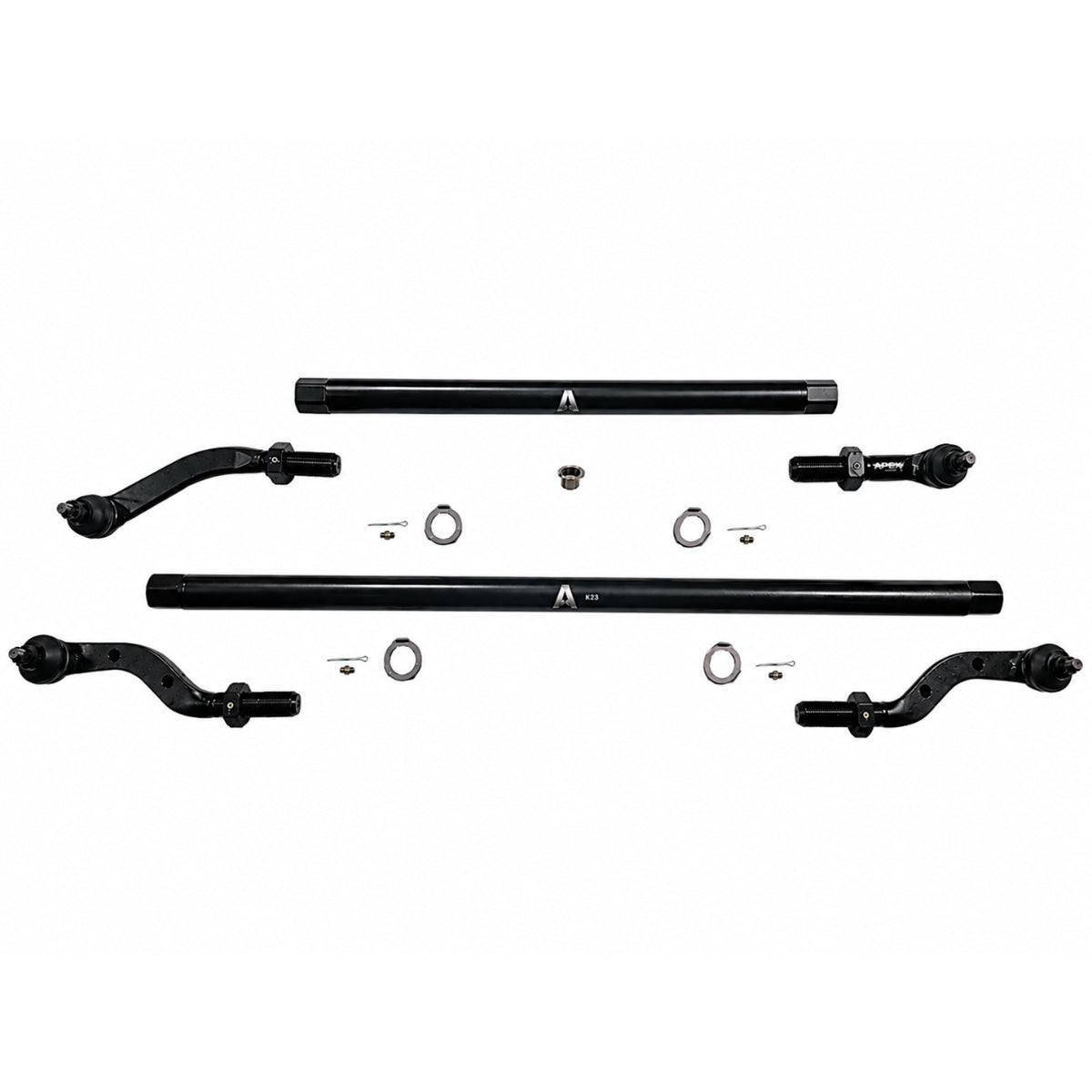

Depending on the options you choose above, it can be sent as an under knuckle mount (standard) or over knuckle mount (flip kit). All Flip Kits include the taper sleeve!!

Note: taper sleeves require the knuckle drag link mount to be drilled through with a straight 7/8" drill bit.

It does not include the steering stabilizer bracket which you will need to choose in the options above based on the steering stabilizer you use.

Wheels and Spacers: This kit is compatible with AEV and factory Rubicon wheels without the need for wheel spacers or alternative factory wheel options. It is designed to work with 17" wheels and accommodates factory wheel specifications.

FITMENT: This steering system fits stock Dana 30/44 axles. If you have done any major modifications give us a ring at 480-470-5500 or email us at sales@apexchassis.com to discuss. This will fit most modifications, but we want to make sure before shipping.  You may also want to discuss with your local Jeep shop to make sure all your modifications are compatible.

If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well, just contact us to order.

Jam nut wrenches:
KIT521 - 2x WR112 41mm/46mm

Replacement set screws:
Tie Rod/Drag Link - XP172

Housing
  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
Ball studs
  • SAE 4140 hot forged Chromoly Ball Studs: For strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads : Allows for very easy movement of hardware on install and superior holding when torqued. (Installer Choice).
Bearing design

Rugged Metal to Metal Bearing.

Boots
  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • DuroBoot - The Ultimate Off-Road and 4x4 Boot for Extreme-Duty Steering and Suspension. Made from solid rubber, DuroBoot replaces traditional flimsy dust covers / boots with a rugged solution built for extreme conditions while still allowing full articulation.
Finish
  • E-Coating: Extremely durable electrochemical finishing process
Hardware
  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry standard where high vibration loads occur.
Adjusting rods
  • 1.75" DOM SAE 1020 Tube: Because some people prefer steel and there are as many good reasons for it as there are for aluminum.
Lubrication
  • Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves : Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.
Special features
  • ProLock Washers™ – An APEX Exclusive
  • Our patent-pending ProLock Link Connect System™ is engineered to eliminate one of the most common steering system failures: unwanted tie rod rotation and loosening jam nuts.
  • At the heart of the system is our precision-machined keyway washer, which mechanically locks your tie rod and drag link ends to the adjusting sleeve — preventing connecting rod rotation under load.
  • We’ve paired this with a purpose-built jam nut featuring integrated set screws, designed to positively lock the assembly in place and eliminate the common issue of jam nut loosening over time.
  • Minimum Engagement Mark on Drag Link End Threads: If this mark in the thread of the drag link is showing it means you are beyond the safe engagement of threads into the adjusting sleeve. You may be lifted too high and need to switch to a flip kit or you may need to equal out the adjusting sleeve between the two ends.
  • Tie Rod Ends & RH Drag Link End - Flopper Stoppers Built In: Unlike the poly hockey pucks that most brands use, our heavy duty "Flopper Stoppers" are built into the tie rod end and drag link end bearings, giving you an industry leading 27 degrees of stud swing left and right and only 2 degrees of stud swing forward and aft, keeping your tie rod and drag link from rotating and flopping. The competitor hockey puck style systems also call for the removal of the tie rod end boot, which is there to keep the dirt out and the grease in.
  • Pre Bent Ninja Washers ™: An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps. And who doesn't want a ninja on their front end!
  • Our adjusting sleeves are made in the USA

Apex Honor System Warranty– If you absolutely beat the crap out of things to the point that it should not have reasonably survived and our product outlived anything you had previously run, then give us a high five and order another one!!

If you feel we underperformed and your part should be warrantied, please make your warranty claim here and we will happily send you the replacement part.

Let’s make this easy: You may not need to send your parts back to us if you have provided adequate photo or video evidence in the warranty claim form.

If you are a total bad ass and not requesting warranty but would like to help us to continue to design the most extreme products on the market, then please upload photos and a description of your issue here at APEX Feedback and we will send you some Apex swag and a 10% discount code for future purchases.

The Not So Fine Print:

Your Apex Product must be purchased directly or through one of our authorized dealers in order for the Apex Warranty to apply.

You must register your product, with proof of purchase, within 90 days of purchasing here: Warranty Registration Form.

Products not registered will not be covered past 90 days from the date of purchase.

APEX will, at its sole discretion, refund the original purchase price or replace free of charge any APEX steering or suspension component for manufacturer defects, premature wear, or breakage for the life of the vehicle, as long as the original purchaser of the component owns the vehicle.

This warranty is limited only to the replacement of defective parts and ground shipping, it does not include labor for removal or replacement of the parts or any other direct or indirect expense.

This warranty is void if the components are, at Apex’s sole discretion, improperly installed, modified, or used in an application for which the component was not designed.

Warranty does not cover cosmetic imperfections, boots, bushings, or Heim style joints. These are regular wear items.

This warranty statement is governed by the laws of the State of Arizona.

No other warranty, either expressed or implied, shall apply.
